Elektroonika komponendid

UNIT mõõteriistad



 UT12A /UNI-T/ , UNI-T



pingeindikaator
universaalne
HIND 7EUR

Voltage Sensitivity: 90 ~ 1000VAC
Bandwidth: 50/60Hz
Normal Indicators: Beep and flashing LED indicate the presence of voltage
Battery Indication: The LED will not flash if the battery is less than 2V.The beep sounds will still have but may be weaker.
Silent Indicators: LED flashing only, it could save battery
Auto Power Off: Around 3 minutes
Power: 1.5V Battery (AAA) x 2








 UT20B /UNI-T/ , UNI-T



universaalne tester

HIND 7EUR

Battery Test: 1.5V, 9V
Diode Test
Low Battery Display
Square Wave Output 50Hz
Input Impedance for DC Voltage Measurement: 1 MOhm
Max.display 1999 (31 x 13 mm)
Power: 12V battery (A23) included





UT33C /UNI-T/ , UNI-T



universaalne tester

HIND 14EUR

Functions:
AC/DC current and AC voltage
resistance
temperature (ºC and ºF)
continuity test (with buzzer)
diode test
Data Hold function
Low battery indication







UT51 /UNI-T/ , UNI-T



universaalne tester

HIND 23EUR
Main Features:


● With 10A fuse, safer
● With sleep function
● LCD backlight makes you see your testing data clearly.
● Strong case for protection, do not be afraid of dropping.
● Suitable for voltage / current / resistance / capacitance testing and analysis.
● Powered by 1 x 9V 6F22 battery (included).



UT300C /UNI-T/ , UNI-T



digitaalne termomeeter
universaalne

HIND 26EUR

Temperature range: -208 ºC to 400 ºC.
Single-spot laser sighting.
Backlit LCD display.
Current / MIN and MAX temperature.
C and ºF selection.
Low battery display.

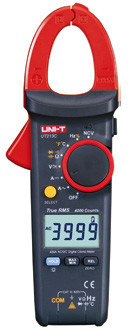

UT213C /UNI-T/ , UNI-T



ampertangid alalisvooluga

HIND 58EUR

TECHNICAL SPECIFICATIONS
AC Current (A) 4A/40A/400A
40A/400A ±(2.5%+5)
DC Current (A) 40A/400A ±(2.0%+3)
AC Voltage (V) 4V/40V/400V/600V ±(1.2%+5)
DC Voltage (V) 400mV/4V/40V/400V/600V ±(0.8%+1)
Resistance (Ω) 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+2)
Capacitance (F) 50nF/500nF/5μF/50μF/100μF
40nF/400nF/4μF/40μF/400μF/4mF/40mF ±(4.0%+5)
Frequency 10Hz~1MHz ±(0.1%+4)
Temperature (℃) -40~1000℃ ±(1.0%+3)
Temperature (℉) -40~1832℉ ±(1.0%+6)

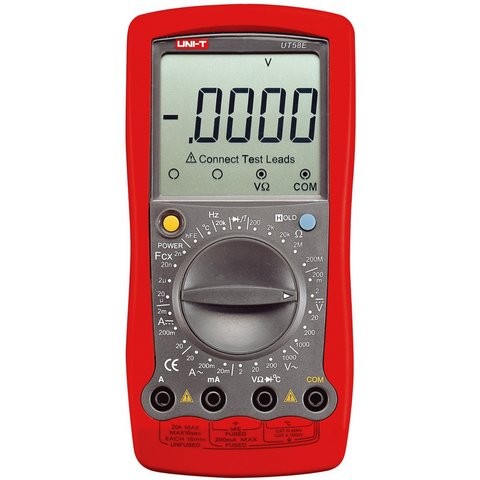

UT58E /UNI-T/ , UNI-T



tester

HIND 65EUR

TECHNICAL SPECIFICATIONS
AC Current (A) 4A/40A/400A
40A/400A ±(2.5%+5)
DC Current (A) 40A/400A ±(2.0%+3)
AC Voltage (V) 4V/40V/400V/600V ±(1.2%+5)
DC Voltage (V) 400mV/4V/40V/400V/600V ±(0.8%+1)
Resistance (Ω) 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1.0%+2)
Capacitance (F) 50nF/500nF/5μF/50μF/100μF
40nF/400nF/4μF/40μF/400μF/4mF/40mF ±(4.0%+5)
Frequency 10Hz~1MHz ±(0.1%+4)
Temperature (℃) -40~1000℃ ±(1.0%+3)






UT342 /UNI-T/ , UNI-T



digitaalne värvikihi mõõtja

HIND 140EUR

Specifications:
Iron matrix measuring: 0 to 55¦Ìm ±3dgt 56 to 1000¦Ìm ±(3.0%+1dgt)
Aluminum matrix measuring: 0 to 55¦Ìm ±3dgt 56 to 1000¦Ìm ±(3.0%+1dgt)
resolution: 1¦Ìm
General Characteristics:
Power: 9V battery 6F22 (not included)
LCD size: 22 * 22mm
Product color: Red + gray
Product weight: 144.2g
Product size: 153mm * 110mm * 40mm
Package Size: approx. 19cm * 11cm * 6cm / 7.5in * 4.3in * 2.4in
Package Weight: approx.275g / 9.7oz
